Hunton Silencio Thermo

Sound-absorbing and waterborne underfloor heating combined

Hunton Silencio Thermo is an acoustic insulation impact sound sheet designed for waterborne underfloor heating. The sheet has pre-cut grooves for heating pipes.

Why choose Hunton Silencio Thermo?

  • Hunton Silencio Thermo is eco-friendly
  • The sheets provide a unique combination of sound insulation and waterborne heating
  • Impact-sound absorbing sheets are energy efficient
  • Hunton Silencio Thermo provides rapid temperature regulation
  • Hunton Silencio Thermo has Norwegian Technical Approval from SINTEF Byggforsk, which means the sheets comply with building regulation requirements (TEK 10)

Eco-friendly

Hunton Silencio Thermo is made of 100% wood fibre that can be recycled.

Product properties

Hunton Silencio Thermo is the ONLY product that combines impact sound absorption and waterborne underfloor heating.

The result is a construction with a low build height and good sound insulation which is easy to assemble. Hunton Silencio Thermo comes in three different elements; bend, standard and distribution.

Rapid temperature regulation

Hunton Silencio Thermo enables you to regulate the floor temperature ten times faster than pipes cast in concrete.

Technical approval

Hunton Silencio Thermo has Norwegian Technical Approval from SINTEF Byggforsk (the Norwegian Building Research Institute).

SINTEF Byggforsk Technical Approval Hunton Silencio Thermo

Silencio Thermo Calculator

Calculate number of plates required

Hunton Silencio® Thermo Standard element

ProductProduct nrThickness [mm]Width [mm]Length [mm]Boards pr. palletWeight pr. pallet [kg]m2 pr. palletDensity p [kg/m3]Thermal conductivity [w/mk]
Silencio Thermo 16/200 6101 3660018003031132,4240-2800,05
Silencio Thermo 17/200 6102 3660018003031132,4240-2800,05
Silencio Thermo 17/300 6103 3660018003031132,4240-2800,05
Silencio Thermo 20/300 61043660018003031132,4240-2800,05
Silencio Thermo 16/200 61352460018004531148,6240-2800,05
Silencio Thermo 17/200 6136 2460018004531148,6240-2800,05
Silencio Thermo 17/300 6137 2460018004531148,6240-2800,05

Hunton Silencio® Thermo Return-element

ProductProduct nr.Thickness [mm]Width [mm]Length [mm]Boards pr. palletWeight pr. pallet [kg]m2 pr. palletDensity [kg/m3]Thermal conductivity [w/mk]
Silencio Thermo 16-17/20061063630016006027628,8240-2800,05
Silencio Thermo 17/300 6107 3630018006031132,4240-2800,05
Silencio Thermo 20/300 6108 3630018006031132,4240-2800,05
Silencio Thermo 16-17/200 61383630016009027643,2240-2800,05
Silencio Thermo 17/300 6139 2430018009031148,6240-2800,05

Hunton Silencio® Thermo Supply-element

ProductProduct nr.Thickness [mm]Width [mm]Length [mm]Boards pr. palletWeight pr. pallet [kg]m2 pr. palletDensity [kg/m3]Thermal conductivity [w/mk]
Silencio Thermo 16-17/100 6109 3660018003031132,4240-2800,05
Silencio Thermo 20/100 61103660018003031132,4240-2800,05
Silencio Thermo 17/100 6140 2460018004531148,6240-2800,05

Hunton Silencio® Thermo Heat-distribution plate

ProductProduct nr.Width [mm]Length [mm]Weight pr. m2Plates pr. boxWeight pr. box [kg]m2 pr. box
Silencio Thermo Heat-distribution plate6172 / 4585719318511504601915
Silencio Thermo Heat-distribution plate6170 / 2441073018511504601915
Silencio Thermo Heat-distribution plate6173 / 4644736128011502,5351815
File name
Category
Download
Hunton Silencio Thermo Product sheet
  • Product sheet
Silencio Thermo Assembly instructions
  • Assembly instructions
Hunton Silencio Thermo Impact sound-tests
  • Table
Hunton Silencio Thermo 24/36 Technical Approval
  • Technical approval
Hunton Silencio Thermo 24/36 Decleration of Performance
  • Declaration of performance (DOP)

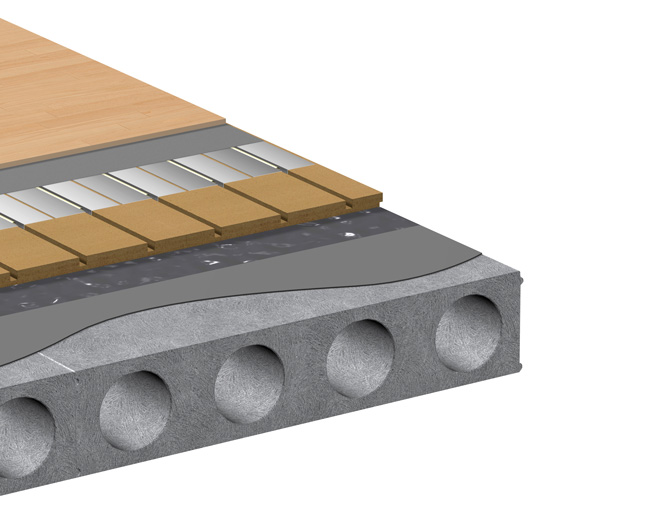

Hunton Silencio Thermo on concrete floor

Hunton Silencio Thermo on concrete floor

Hunton Silencio Thermo in floor construction

Hunton Silencio Thermo in floor construction

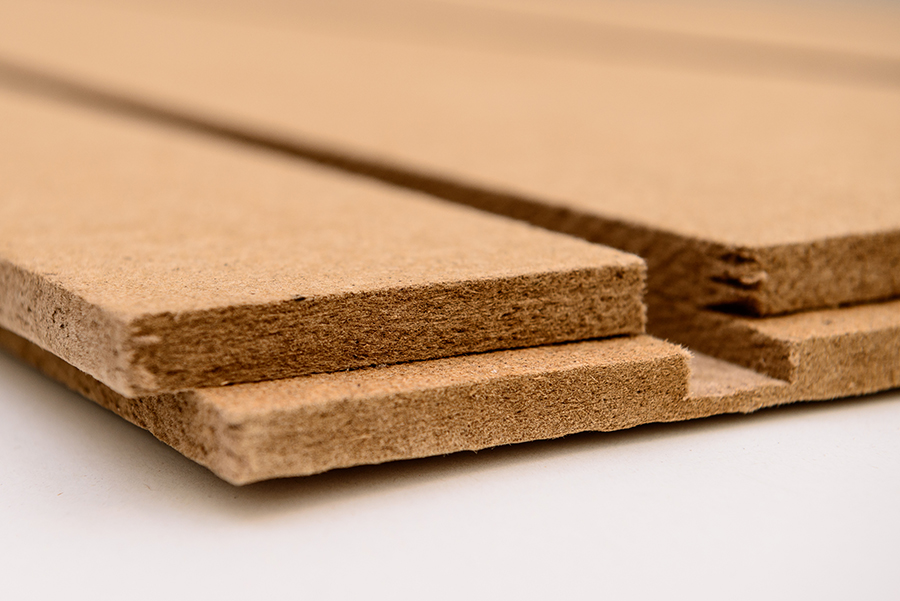

Hunton Silencio Thermo close-up

Hunton Silencio Thermo close-up
